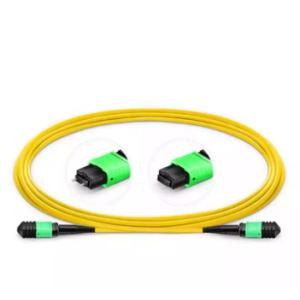

Mpo To Mpo 8 12 24 Fiber Optic Patch Cord Low Insertion

Ask Lasest Price
Brand Name :	Senko / US CONEC / Furukawa Connector
Model Number :	MPO MTP UPC OM3 OM4 8F 12F 24F
Certification :	ISO9001:2015
Price :	US $10 - 20/ Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50K
Delivery Time :	7-8 working days

Add to Cart

Product Details
Company Profile

Mpo To Mpo 8 12 24 Fiber Optic Patch Cord Low Insertion

High quality MPO to MPO Fiber Optic Jumper Low insertion 8 12 24
Fiber Optic Patch Cord

MPO/MTP trunk cables are used to interconnect cassettes, panels or
ruggedized MPO fan-outs, and easy to rapid deployment of high
density backbone cabling in data centers and other high fiber
environments reducing network installation or reconfiguration. Each
cable has a Male or Female MTP/MPO connector on each end. With
highly integrated design and manufacturing capability, Shenzhen IH
Fiber Cable can provide complete solution for your data center
interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP
Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords , IP-Series
MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MTP
Patch Cords ,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel

Applications

High density architectures
Data communication network
Optical System Access network
Storage area networking fiber channel5. LANS / WANS/ FTTX

Features

100% pre-terminated and tested in factory to ensure transfer
performance2. Rapid configuration and networking, time-saving
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12C, 24C, 48C, 72C,96C, 144C

Specification

Specification	Single Mode			Multi Mode
Parameter	PC	UPC	APC	UPC
Operating Wavelength	1310nm, 1550nm			850nm, 1300nm
Insertion Loss	≤0.3dB	≤0.2dB	≤0.3dB	≤0.2dB
Return Loss	≥40dB	≥50dB	≥60dB	≥30dB
Fiber Type	G652D,G655, G657A1, G657A2, G657B3			OM1/OM2/OM3/OM4/OM5
Fiber Brand	YOFC,Corninng
Exchange	≤0.2dB
Repeartability	≤0.2dB
Durability	> 1000 times
Connectors Type	SC, LC, FC, ST, E2000, MU, MTRJ, MPO, DIN, SMA, VF-45, LX.5
Cable Type	Simplex, Duplex(figure 8)
Sheath Material	PVC, LSZH, OFNR, OFNP
Cable Diameter	φ3.0mm, φ2.0mm, φ0.9mm or Specify
Length (M)	Customized
Operating Temperature	-40℃~+60℃
Storage Temperature	-45℃~+85℃
Compliant Standards	CE,RoHS, REACH and IEC
