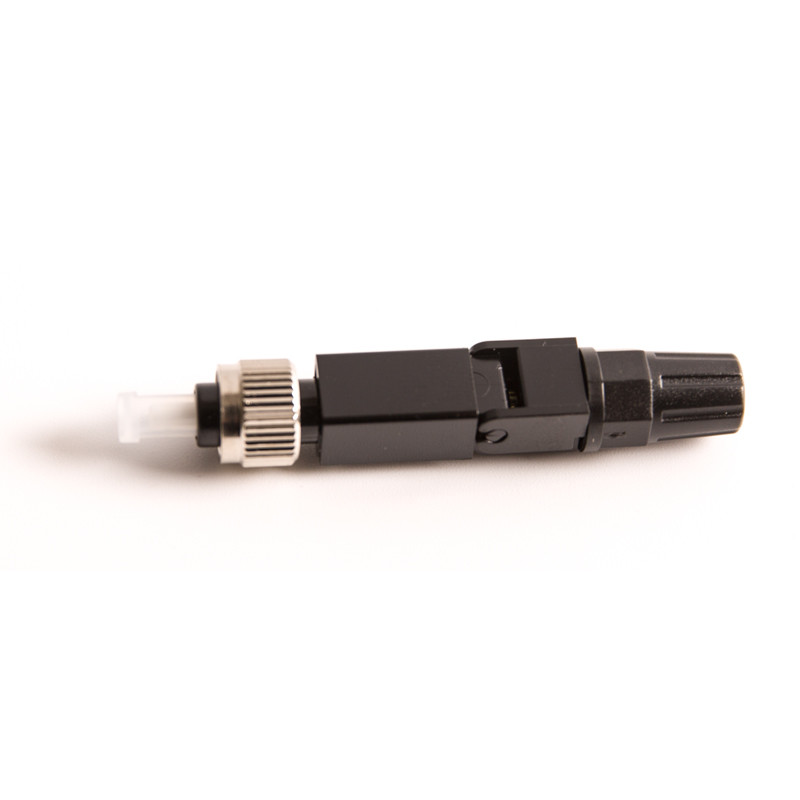

Singlemode Quick Field FC UPC Fiber Optic Connector Assembly

Singlemode Quick Field FC UPC Fiber Optic Connector Assembly

FC UPC Singlemode Optical Fiber Fusion Splice-on Quick Field Assembly Fast Connector

Product Description:

Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly.
It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.
It is designed for high quality and high efficiency for installation.the structure of crimping position is a unique design,
and need not gluing, polishing neither any consumables.adopted fiber preinstalled structure, and convenient for field installation.

Key Features:

1) Factory-installed fiber stub.
2) No epoxy and polishing required, No special tools needed when installed.
3) Allows up to three re-termination result.
4) Easily installed, Quick and easy fiber termination in the field.
5) Only 30 seconds needed to learn the process of installation and making.
6) Cost effective, Warranty: One year.
7) Fast connecting and repeat, No special tools needed when installed.
8) Can be made on-site without splicing connectors.
9) Eliminates cable excess length and pigtail splice storage.
10) Can be intalled and maked repeatedly thus avoiding loss.

Application:

1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail
7. Telecommunication Devices
8. Data Communications Networks
9. Optical Fiber LAN and Access Network
10. Industry and Military Applications

Product length:50mm ≤L≤60mm

Optical Characteristics

Fast Connector Specification
Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	ypical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)

Product Picture

Operation

Factory picture
